圆形堆取料机
服务热线：13358079111（陆先生） 13506277748 (丁先生）
产品描述Product description

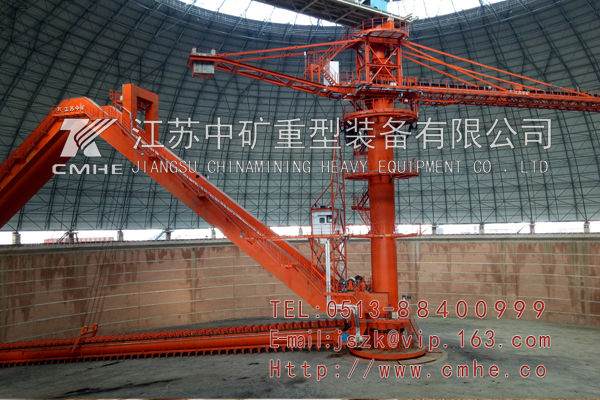

圆形料场堆取料机是悬臂堆料机与桥式刮板取料机集于一体设备，我司目前有圆形堆取料机轨道直45m-120m各种规格。
圆形堆取料机主要由悬臂堆料机、刮板取料机、主梁装置、端梁装置、料耙装置、中心柱装置、司机室、电气室、液压系统和电气控制系统等组成。堆料方式为人字形和倾斜层组合的连续复合形堆料，取料方式为全端面取料。
物料由布置在中心柱顶部来料皮带机输送至悬臂堆料机，按“连续复合式“方法进行堆料。主梁的一端支撑在中心柱上，另一端支撑在端梁小车的端梁上。刮板取料机构安装在主梁下面，取料方式为全端面取料。料耙支撑于主梁侧面的方形轨道上，料耙的塔架设在主梁上。料耙驱动是液压传动。取料机的张紧为液压张紧。
Round yard is stacker reclaimer cantilever stacker and bridge type scraper reclaimer equipment at an organic whole, our company have the circular material piling and taking machine orbit straight 45 m - 120 - m kinds of specifications.
Circular material piling and taking machine is mainly composed of cantilever pile machine, scraper reclaimer, main girder, beam device, material scraper device, the center column device, driver room, electrical room, hydraulic system and electric control system, etc. Stacking way for chevron and sloping layer combination of continuous composite material piling and taking way is expected to take for full face.
Decorate material by the center top material belt conveyor to cantilever pile machine, according to the "continuous" composite method of stacking. Girder at one end of the support on the center column, the other end of the support beam on beam cars. Scraper feeding mechanism is installed below the main girder, feeding way is take for full face. Material rake supports in girder on the side of the square, is expected to rake in the tower is located in the main girder. Is expected to rake drive hydraulic transmission. Reclaimer tensioning for hydraulic tensioning.
技术参数表I Technical Date
规格型号 | 输送介质 | 轨道直径(m) | 堆料能力(t/h) | 取料能力(t/h) | 带宽 (mm) | 刮板取料机 | 行走机构 | 装机功率(kw) | 重量 (t) | ||
调车速度(m/min) | 链速(m/s) | 刮板尺寸(mm) | 链速 (m/s) | ||||||||
YDQ45/150/200 | 煤，石灰石 | 45 | 200 | 150 | 800 | 1200×300 | 0.33 | 6.46 | 0.0041-0.041 | 105 | 140 |
YDQ60/300/500 | 煤，石灰石 | 60 | 500 | 300 | 1000 | 1500×300 | 0.51 | 5.8 | 0.006-0.06 | 130 | 180 |
YDQ65/300/600 | 煤，石灰石 | 65 | 600 | 300 | 1000 | 1500×300 | 0.51 | 5.8 | 0.006-0.06 | 130 | 186 |
YDQ80/500/800 | 石灰石 | 80 | 800 | 500 | 1000 | 1600×350 | 0.51 | 5.8 | 0.006-0.06 | 175 | 239 |
YDQ90/500/900 | 石灰石 | 90 | 900 | 500 | 1000 | 1600×350 | 0.57 | 7.28 | 0.0047-0.047 | 223 | 280 |
YDQ90/600/1000 | 石灰石 | 90 | 1000 | 600 | 1000 | 1600×350 | 0.57 | 7.28 | 0.0047-0.047 | 230 | 285 |
YDQ95/600/1200 | 石灰石 | 95 | 1200 | 600 | 1200 | 1600×350 | 0.57 | 7.28 | 0.0047-0.047 | 260 | 299 |
YDQ100/800/1500 | 石灰石 | 100 | 1500 | 800 | 1400 | 1800×380 | 0.63 | 5.28 | 0.0047-0.047 | 300 | 360 |
